Applications using the Warisaki® method
Materials supported
Ferrous
Ferrous SPCC SPHC SPCE
Galvanized steel plate SECC SEHC SGCC
Tool steel SK5
SuperDyma ZAM
High‐tensile steel plate SAPH SPFH
Non-ferrous
Stainless steel SUS304 SUS316 SUS430 SUS420J2
Aluminum A1100 A1020 A5052 A2027
Copper, copper alloy C1100 C1050 C5191
Brass C2801 C2680
Major Warisaki® products
- Use:
- Securing and heat dissipation for cylindrical batteries of hybrid vehicles, etc.
- Material:
- Aluminum
- Feature:
- Warisaki® fabrication for extruded material
- Use:
- Heavy electrical machinery bus bar jointing, etc.
- Material:
- Copper
- Feature:
- High current circuit connection
- Use:
- Connector receptacles, caps, etc.
- Material:
- Copper
- Feature:
- One-piece cylindrical shape from plate material
- Use:
- Basic pattern of Warisaki® fabrication
- Material:
- Stainless steel punching plate
- Feature:
- 3 mm plate thickness
- Use:
- Basic pattern of Warisaki® fabrication
- Material:
- Iron
- Feature:
- 3 mm plate thickness
- Use:
- Basic pattern of Warisaki® fabrication
- Material:
- Copper
- Feature:
- 0.8 mm plate thickness
Major outer circumference Warisaki® products
- Use:
- Air conditioner coolant branch tubing, etc.
- Material:
- Aluminum
- Feature:
- Air conditioner coolant branch tubing, etc.
- Use:
- Tubing joints, positioning parts, etc.
- Material:
- Iron, Aluminum, copper
- Feature:
- Warisaki® fabrication for pipes
- Use:
- Integration of motor housings, etc.
- Material:
- Iron, Aluminum, copper
- Feature:
- Warisaki® fabrication for drawn material
Major inner circumference Warisaki® products
- Use:
- Suspension arms, etc.
- Material:
- Iron
- Feature:
- Partial strengthening of parts by inner Warisaki®

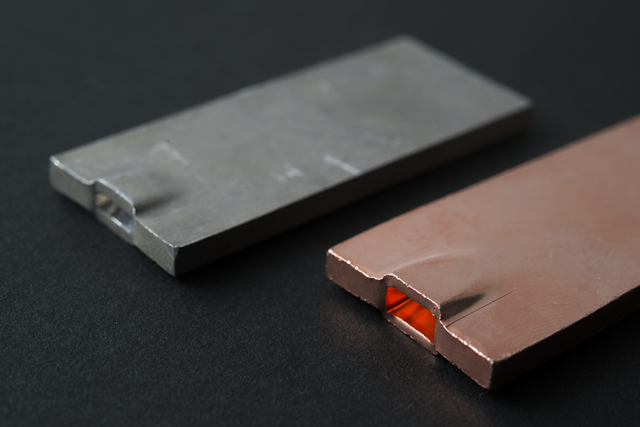

- Use:
- Connectors, etc.
- Material:
- Copper, aluminum
- Feature:
- Integration of connectors, etc.
Major Warisaki®jointing products

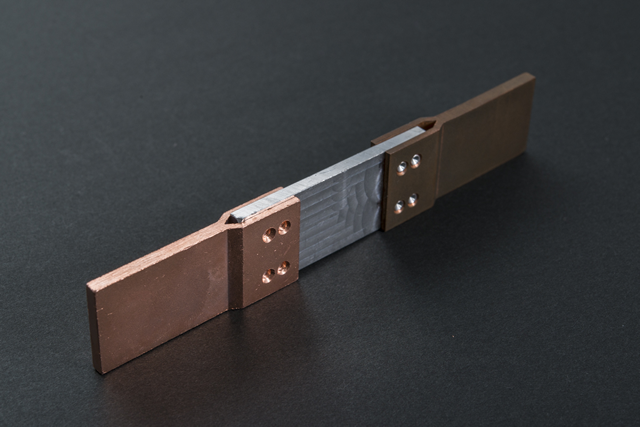

- Use:
- Bus bar jointing, etc.
- Material:
- Copper, aluminum
- Feature:
- Jointing of same and dissimilar metals
