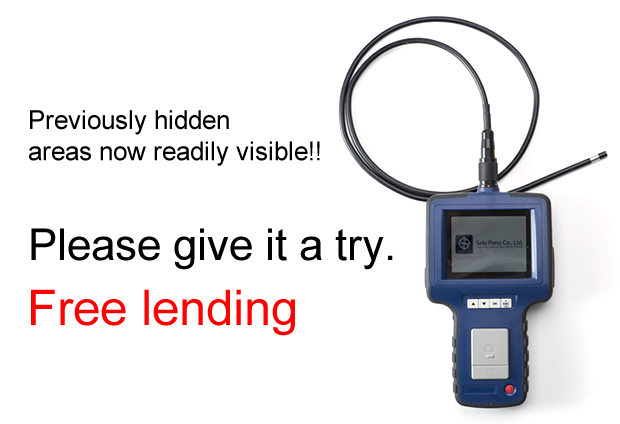

Industrial Video Scope FASTA Series
Features of Industrial Video Scope
Offered with assorted options of probes depending on the usage
Best domestic prices
Low cost, high performance
The built in rechargeable battery can be used continuously up to 4 hours.
Each probe is waterproof (to standards IP67 and 68). This can be used in oil, petroleum, and kerosene as well!
Photos and videos can also be taken
Total 3 Combinations of Standard KIT
Standard KIT1 FASTA-5.5mm-1M-SM-Metal
Main Unit + 5.5 mm probe
Standard Accessories:
Lens (70°, 90°, 120°), Lens cleaner, USB cable, Video output cable, AC adapter, SD card
Special carry case
Suggested retail price of standard kit: 190,000 JPY
Special price for Seki Press: 98,800 JPY (Including tax)
Standard KIT2 Model FASTA-ST
Main unit (probe sold separately)
Standard Accessories:
Lens cleaner, USB cable,
Video output cable, AC adapter, SD card
Special carry case
Suggested retail price of standard kit: 110,000 JPY
Special price for Seki Press: 68,000 JPY (Including tax)
Standard KIT3 Model FASTA-Articulation-1M
Standard kit: FASTA-ST
Standard Accessories:
Lens cleaner, USB cable,
Video output cable, AC adapter, SD card
Probe Options:
Model Articulation Console-1M
Special carry case
Suggested retail price of standard kit: 420,000 JPY
Special price for Seki Press: 235,000 JPY (Including tax)
Regarding the difference between standard KIT1 and standard KIT3
The difference in probes is reflected through their prices. Standard KIT1 has the standard 5.5 mm probe and standard KIT3 has the Articulation-Console-1M the end of which moves ±150°. Other specifications are the same.
Option: 'Combinations can be made freely depending on the usage'
| Model | Features | Special price (Including tax) |
| Articulation-Console-１M | Can be operated by hand by oscillating the tip at 300° | 168,000JPY |
| 4.9mm-1M-Switch | System with two cameras. Both front and side views can be observed by the same probe. | 55,800JPY |
| PIPE-22mm-22m | Maximum probe length 22 m Ideal for inspection of pipe duct, etc. | 258,000JPY |
| 3.9mm-1M（3M)-SR-FV | Can easily observe a tip of Φ3.9 for a narrow crack | 43,800JPY |
Articulation-Console-１M
Articulation-Console-１M
Climbing Ball 5.5
Can observe bent areas smoothly
4.9mm-1M-Switch front view
4.9mm-1M-Switch side view
5.5, 3.9 mm probe
For 3.9 mm probe
Rotating mirror 90°
PIPE-22 mm-22 m Camera head
PIPE-22mm-22m
Sample of Inspection Videos
Information about Industrial Video Scope
